An MPO cable combines multiple fibers into a single compact connector for high-density networks. MPO-8, MPO-12, and MPO-16 differ by fiber count, but the right choice depends on the transceiver, active fibers, polarity, and network design. This helps ensure the cable matches current equipment while supporting reliable performance, efficient fiber use, and future upgrades without complexity. For MPO cable solutions in the USA, contact Cables Unlimited to discuss your project requirements.
What Is an MPO Cable?
MPO stands for Multi-Fiber Push-On. An MPO fiber connector houses several optical fibers in a single ferrule, enabling multiple fiber paths to be connected simultaneously.
MPO cables are widely used in data centers, backbone links, switch-to-switch connections, and structured cabling systems where space and connection density matter.
MTP® is a branded type of MPO connector. It follows the same multi-fiber connection concept while using a specific connector design.
For a broader introduction to these systems, see Cables Unlimited’s Quick Guide to MPO Fiber Cables.

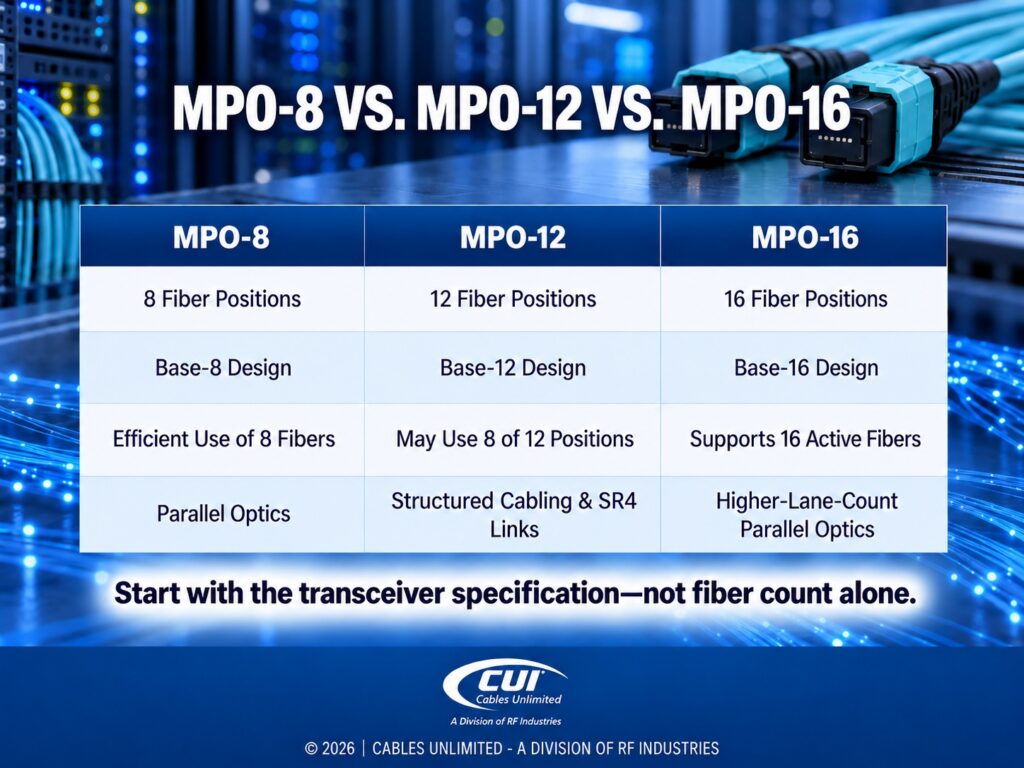

MPO-8 vs. MPO-12 vs. MPO-16 at a Glance
| Feature | MPO-8 | MPO-12 | MPO-16 |
| Fiber positions | 8 | 12 | 16 |
| Cabling design | Base-8 | Base-12 | Base-16 |
| Common use | Parallel optics | Structured cabling and SR4 links | Higher-lane-count parallel optics |
| Key point | Uses 8 fibers efficiently | May use only 8 of 12 positions | Supports 16-fiber applications |
The main difference between MPO-8, MPO-12, and MPO-16 is the number of fiber positions in the connector. However, the number of positions does not always equal the number of fibers carrying an optical signal.
For example, an MPO-12 interface can support an application that uses only eight active fibers. This is why cable selection should begin with the transceiver specification rather than the connector count alone.
What Is MPO-8?
MPO-8 uses eight fiber positions in a Base-8 cabling design. In many parallel optical links, four fibers carry transmitted signals while four carry received signals.
This makes MPO-8 a good match for applications where the optical interface requires eight active fibers. All eight positions can be used without leaving extra fibers unused.
MPO-8 is not automatically faster than MPO-12. Its advantage is that the fiber count can closely match applications built around eight active optical paths.
When Does MPO-8 Make Sense?
MPO-8 may be suitable when:
- The existing cabling system uses Base-8 architecture.
- The transceiver requires eight active fibers.
- The network uses parallel optical connections.
- Efficient use of every fiber is important.
- Future upgrades are planned around Base-8 infrastructure.
What Is MPO-12?
MPO-12 provides 12 fiber positions and is widely used in Base-12 structured cabling systems.
It is commonly found in fiber trunks, MPO cassettes, patch panels, and MPO-to-LC configurations. Many installed enterprise and data center networks already use Base-12 infrastructure.
Some SR4 optical links use only eight active fibers even though the physical connector provides 12 positions. In these applications, four middle positions may remain unused.
This is an important distinction: connector position count and active fiber count are not always the same thing.
When Does MPO-12 Make Sense?
MPO-12 can be a practical choice when a facility already uses Base-12 trunks, cassettes, or patching systems.
It may also make sense when replacing existing Base-12 infrastructure would increase cost without providing a clear technical benefit.
What Is MPO-16?
MPO-16 provides 16 fiber positions in a Base-16 design. It can support optical systems that use eight transmit paths and eight receive paths.
One example is 400G SR8, which uses 16 active fibers for parallel transmission.
That does not mean MPO-16 is always faster or better than MPO-8 or MPO-12. Network speed is determined by the optical standard, transceiver, lane rate, and system design. The connector must match those requirements.
When Does MPO-16 Make Sense?
MPO-16 is most relevant when:
- The transceiver specifically requires a 16-fiber interface.
- A new network is designed around Base-16 connectivity.
- Higher-lane-count parallel optics are being deployed.
- High-density data center connections require a 16-fiber path.
How the Parts of an MPO Fiber Run Work Together
An MPO fiber run is easier to understand when each component is viewed as part of one complete path:
Transceiver → MPO patch cable → adapter or patch panel → MPO trunk → cassette or breakout → equipment
Each component has a specific job.
- Transceiver: Defines the optical interface and active fiber requirements.
- MPO patch cable: Connects network equipment to the structured fiber system.
- MPO adapter or coupler: Joins compatible MPO connectors.
- MPO trunk cable: Carries multiple fibers through the backbone.
- MPO cassette: Converts an MPO connection into ports such as duplex LC.
- Breakout cable: Splits one multi-fiber MPO connection into several smaller connections.
- Patch panel: Organizes and protects fiber connection points.
For more information on backbone design, see Optimizing the Fiber Trunk Cable in Data Centers and Telecommunications Cable Networks.
Other MPO Connector Types and Specifications to Check
Fiber count is only one part of MPO cable selection. Connector gender, polarity, fiber mode, and polish also need to match.
Male vs. Female MPO
Male MPO connectors have alignment pins. Female MPO connectors do not.
The gender must be planned throughout the entire fiber channel so that the equipment, patch cables, adapters, and trunks connect correctly.
MPO Polarity
Polarity ensures that the transmit fibers at one end reach the receive fibers at the other.
MPO systems commonly use Type A, Type B, or Type C polarity methods. Rather than checking only one cable, polarity should be verified across the complete optical channel.
For additional technical background, see Fluke Networks’ MPO polarity guidance.
Fiber Type and Polish
MPO fiber optic cable assemblies may use single-mode or multimode fiber. OM3 and OM4 are common multimode choices, while OS2 is widely used for single-mode applications.
Cables Unlimited’s fiber optic patch cable guide provides more detail on multimode fiber types.
Connector polish also matters. UPC and APC interfaces should not be mixed. Read more in the UPC and APC connector differences guide.
How to Choose the Right MPO Cable
The safest way to choose an MPO cable is to start with the optical equipment rather than the cable.
Use this order:
- Check the transceiver specification.
- Confirm how many fibers are active.
- Identify whether the interface requires MPO-8, MPO-12, MPO-16, or another format.
- Confirm whether the fiber is single-mode or multimode.
- Check male or female MPO requirements.
- Verify the required polarity.
- Confirm UPC or APC polish.
- Decide whether the run will use MPO-to-MPO, a cassette, or a breakout cable.
- Review existing Base-8, Base-12, or Base-16 infrastructure.
- Check cable length and the optical loss budget.
Do not choose an MPO fiber cable based only on network speed or fiber count. Start with the optical interface and build the cabling system around it.
Common MPO Cable Selection Mistakes
Small specification errors can prevent an MPO link from working correctly. Common mistakes include:
- Assuming all 12 fibers in MPO-12 are always active.
- Assuming MPO-16 is automatically faster.
- Ordering by network speed without checking the transceiver.
- Ignoring MPO gender.
- Choosing the wrong polarity.
- Mixing UPC and APC interfaces.
- Confusing an MPO adapter panel with an MPO-to-LC cassette.
- Forgetting the loss added by extra connection points.
- Mixing single-mode and multimode components.

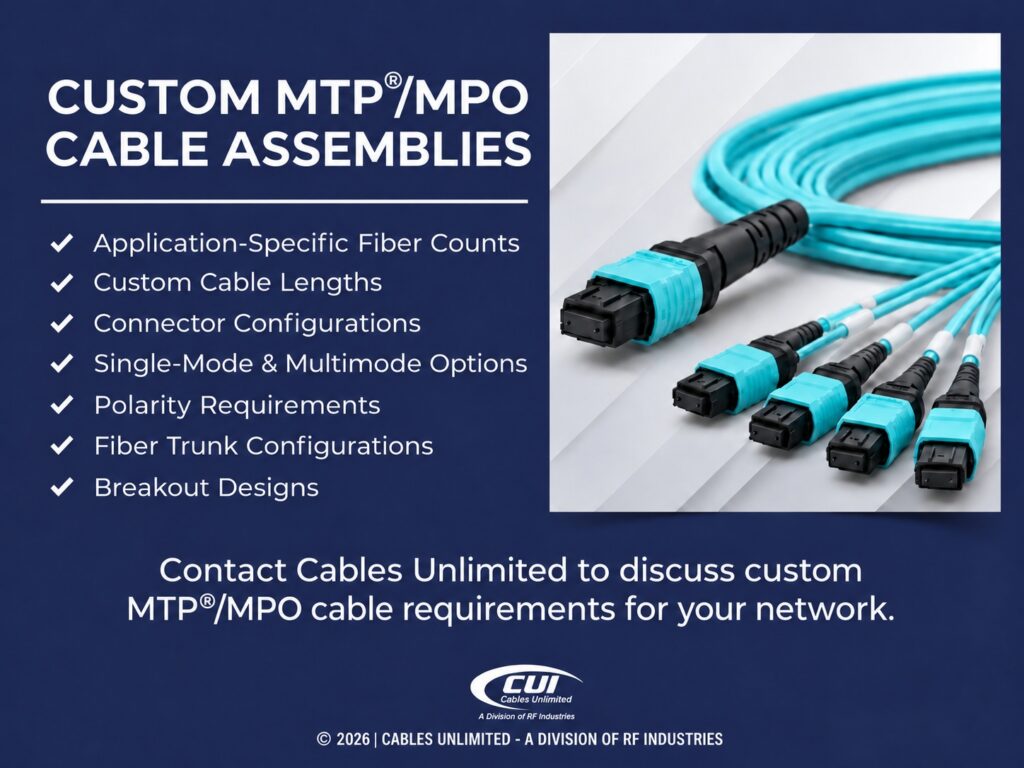

Custom MTP®/MPO Cables for Networks in the USA
Standard assemblies do not fit every network layout. Organizations across the USA may need a custom fiber optic cable assembly when standard fiber counts, lengths, connector configurations, or breakout designs do not match their equipment.
Cables Unlimited provides custom MTP/MPO cables for projects that require specific fiber types, connector arrangements, lengths, or fiber trunk configurations.
Get the Right MPO Cable for Your Network
The right MPO cable should match the complete optical link, not just the required speed. Cables Unlimited can help specify custom MTP/MPO cable assemblies by fiber count, connector type, fiber mode, polarity, length, and application. Review the available MTP/MPO options or request a quote for a configuration built around your network requirements.
