A fiber optic patch cable connects network equipment and patch panels, enabling reliable data transmission. Choosing the right OM fiber type affects speed, distance, and cost.
In the USA, fiber optic patch cables are used across data centers, enterprise, industrial, and telecom networks. As a U.S.-based custom cable manufacturer, Cables Unlimited helps teams select and build the right fiber optic patch cable solutions for their applications. Contact us today.

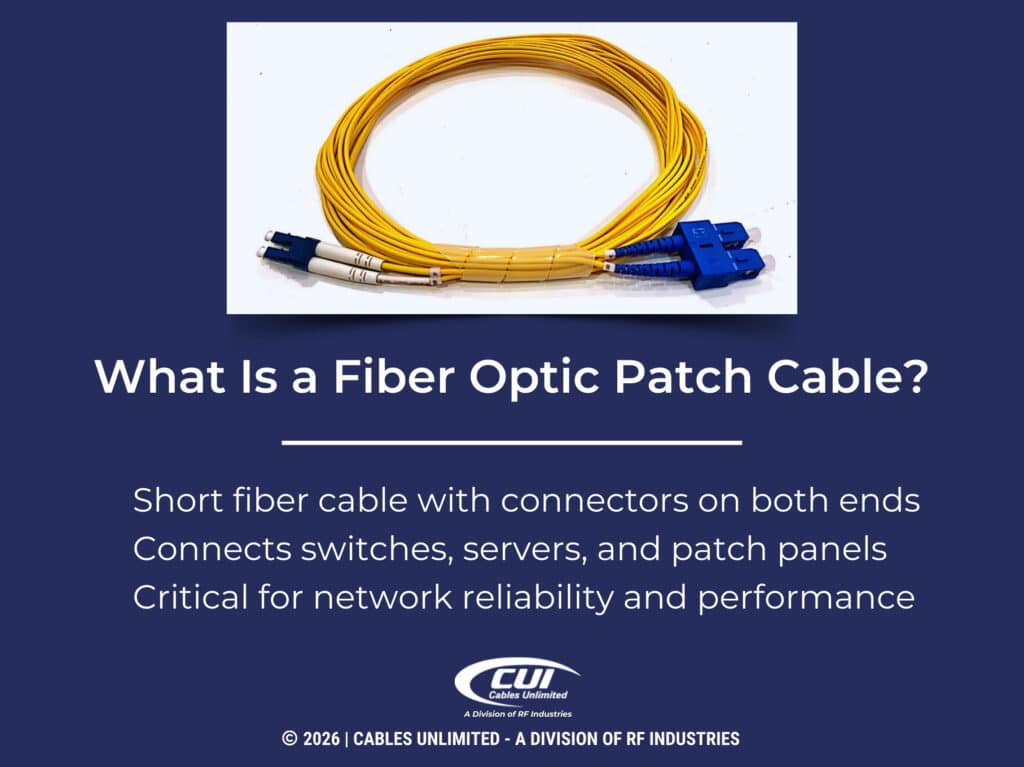

What Is a Fiber Optic Patch Cable?
A fiber optic patch cable is a short-length fiber cable with connectors on both ends. It is used to link equipment to patch panels, switches, servers, and other network hardware. It is important to understand how patch cables differ from other fiber solutions:
- Patch cables are flexible, shorter cables used for equipment connections and cross-connects.
- Fiber trunk cables are multi-fiber assemblies designed for backbone and high-density installations.
- Fiber optic cable assemblies include patch cables, trunk cables, and other pre-terminated fiber solutions built for specific applications.
Patch cables play a critical role in network reliability. Poor-quality or incorrect patch cables can introduce signal loss, limit speeds, and create upgrade issues.
Understanding OM Fiber Cables (OM1–OM5 Basics)
OM fiber cables are multimode fibers that meet international standards and are commonly used in short- to medium-distance networks. The term OM refers to “Optical Multimode.” Each OM rating defines specific performance characteristics that affect how the fiber handles speed, distance, and bandwidth.
Key factors influenced by OM type include:
- Speed: Supported Ethernet data rates
- Distance: Maximum reach at each speed
- Compatibility: Transceivers and connector options
- Cost: Cable, optics, and installation costs
In the USA, OM fiber cables follow TIA and ISO standards for enterprise and data center compatibility. As a U.S.-based custom cable manufacturer, Cables Unlimited builds OM fiber cable solutions that meet these requirements.
OM1 Fiber Optic Patch Cable
OM1 fiber optic patch cable uses a 62.5/125-micron core and was one of the earliest multimode fiber types.
- Supports lower data rates over short distances
- Commonly found in older building infrastructure
- Typically used with LED light sources
OM1 is still used in legacy networks but has limited support for modern Ethernet speeds and is rarely suitable for new installations. In upgrade projects, a custom fiber optic patch cable is often used to replace OM1 while maintaining compatibility with existing equipment.
OM2 Fiber Optic Patch Cable
OM2 fiber optic patch cable uses a 50/125-micron core and offers improved performance compared to OM1.
- Better bandwidth and distance than OM1
- Supports basic Gigabit Ethernet applications
- Often found in mixed or transitional networks
While OM2 offers improved performance, it is becoming less common in new network builds. Most modern USA installations now favor OM3 or higher to support future growth.
OM3 Fiber Optic Patch Cable
OM3 fiber optic patch cables are widely used across the USA due to their balance of performance and cost.
- Laser-optimized multimode fiber
- Supports 10G, 40G, and 100G Ethernet over practical distances
- Common in data centers and enterprise networks
OM3 works well with high-density connector systems and is frequently used with MPO cable types. It is a strong choice for networks that need reliable performance without high cost.
OM4 Fiber Optic Patch Cable
OM4 fiber optic patch cables build on OM3 by offering higher bandwidth and longer transmission distances.
- Improved performance at higher speeds
- Supports longer reach for 10G, 40G, and 100G networks
- Popular in large data centers and enterprise environments
OM4 is fully compatible with custom MTP/MPO cables, making it suitable for scalable and high-density designs. While it costs more than OM3, the added performance often justifies the investment.
OM5 Fiber Optic Patch Cable (Wideband Multimode)
OM5 fiber optic patch cable is designed for wideband operation and advanced network architectures.
- Supports multiple wavelengths on a single fiber
- Enables higher capacity without increasing fiber count
- Designed for future-ready network upgrades
OM5 makes sense in U.S. networks planning for advanced data center designs and long-term scalability. In simpler deployments, OM3 or OM4 may be more cost-effective. OM5 deployments often require support from a custom cable manufacturer to ensure proper design, testing, and compatibility.
OM1 vs OM2 vs OM3 vs OM4 vs OM5: Side-by-Side Comparison
Key differences between OM fiber optic patch cable types include:
- Core size: OM1 uses 62.5 microns; OM2–OM5 use 50 microns
- Supported speeds: Higher OM ratings support higher data rates
- Maximum distances: OM3–OM5 offer greater reach at higher speeds
- Applications: Legacy networks to high-density data centers
- Relative cost: Higher performance generally increases cost
Selecting the right OM fiber depends on network goals, budget, and future upgrade plans.
MPO and MTP Fiber Optic Patch Cables Explained
MPO and MTP connectors are multi-fiber connectors used in high-density environments.
- MPO is a standardized multi-fiber connector
- MTP is an enhanced MPO connector with improved alignment and performance
MPO cable types are commonly paired with OM3, OM4, and OM5 fibers. They are used in both patch cables and fiber trunk cables to support large-scale deployments. Custom MTP/MPO cables offer a better fit, improved performance, and better labeling for complex systems.
Patch Cables vs Fiber Trunk Cables
Patch cables and fiber trunk cables serve different roles:
- Patch cables connect equipment and patch panels
- Optical Fiber trunk cables handle backbone and high-fiber-count connections
Modern networks often use both together, with trunk cables for main runs and patch cables for final connections. As a custom cable manufacturer, Cables Unlimited designs patch and trunk solutions that work together for cleaner layouts and reliable performance.

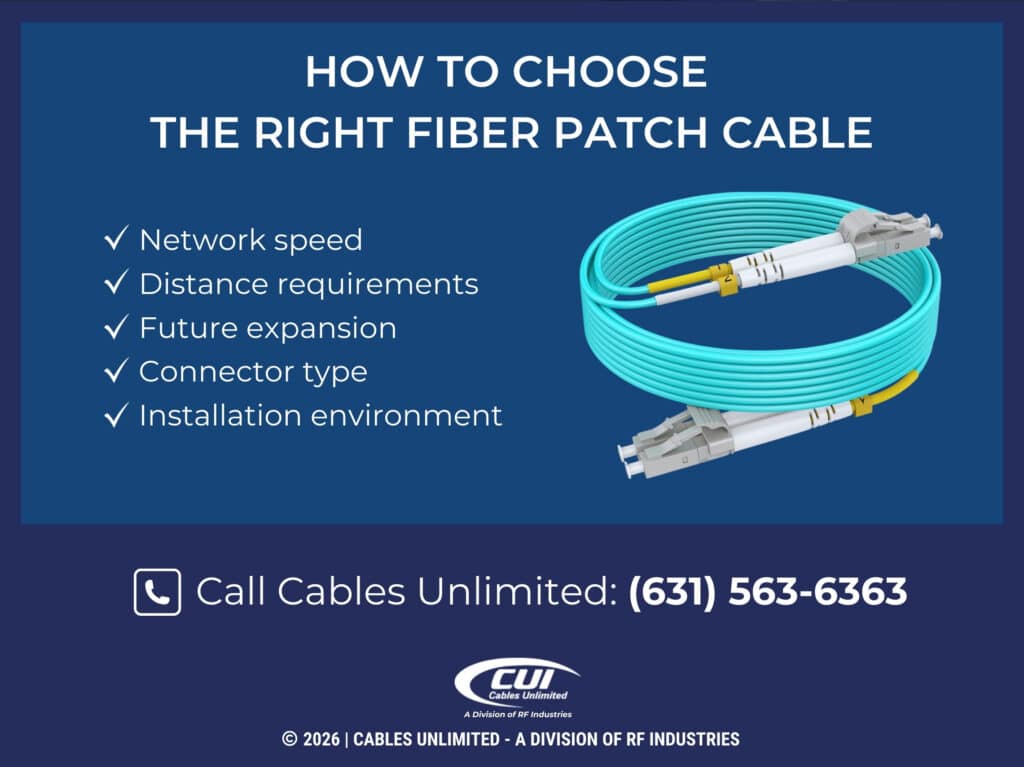

How to Choose the Right Fiber Optic Patch Cable
When selecting a fiber optic patch cable, consider:
- Required network speed
- Transmission distance
- Future network growth
- Connector type
- Installation environment
Common mistakes include choosing based only on cost or using off-the-shelf cables that do not match the application. Working with an experienced custom cable manufacturer like Cables Unlimited helps avoid these issues through application-specific design and support.
Conclusion: Selecting the Best Fiber Optic Patch Cable for Your Network
OM1, OM2, OM3, OM4, and OM5 fiber optic patch cables each serve different needs. There is no single best option for every network.
The right choice depends on speed requirements, distance, scalability, and environment. For many applications in the USA, working with an experienced custom cable manufacturer ensures long-term performance and reliability. To discuss your requirements or request a custom fiber optic patch cable, contact Cables Unlimited to speak with our knowledgeable engineering team.
