Custom cable assembly testing confirms that a finished assembly is wired correctly, physically sound, and ready for use before shipment. Depending on the design, testing may include continuity, resistance, high-voltage, visual, dimensional, and mechanical checks. Cables Unlimited manufactures custom cable assemblies, wire harnesses, and fiber optic solutions in the USA. Contact Cables Unlimited to discuss your cable requirements and testing needs.
Why Custom Cable Assembly Testing Matters
A cable assembly can look correct and still have a problem inside. A broken conductor, incorrect pin location, poor crimp, damaged insulation, or excessive resistance may not be apparent until the cable is installed.
Testing helps catch these issues before they create installation delays or equipment problems. It can verify correct wiring, reliable connections, workmanship, and consistency across a production run.
The required tests depend on the assembly itself. A cable used in robotics may face repeated movement, while a medical, military, telecom, or industrial cable may have different electrical, mechanical, or environmental requirements.
The Testing Process Starts With the Cable Specification
A useful test plan starts with a clear cable specification.
Manufacturers may review the engineering drawing, pinout, connector type, conductor count, wire gauge, cable length, voltage requirements, and customer-defined acceptance limits before determining which tests are needed.
The specification gives the manufacturer something measurable to test against. Without clear requirements, even a well-made cable can be difficult to evaluate consistently.
Buyers defining a new assembly can review these cable spec sheet basics before finalizing drawings and test requirements.
Cable Continuity Testing Checks the Wiring Path
Cable continuity testing verifies that each intended electrical path is complete. Put simply, it answers a basic question: does each conductor connect to the correct point at the other end?
Continuity testing can identify:
- Open circuits
- Broken conductors
- Shorts
- Miswires
- Incorrect connector pinning
A multimeter can be used for simple checks, while more complex assemblies may be tested with automated equipment and dedicated fixtures.
Cables Unlimited documents continuity checks, broken-wire detection, short detection, crimp analysis, and other inspection steps for its custom wire harnesses. Automated Cirris testing is also available for applicable wire harness fabrication requirements.
Continuity is important, but it does not tell the entire electrical story.
Cable Resistance Testing Checks Connection Quality
Cable resistance testing helps determine the electrical quality of a connection.
There is an important difference between continuity and resistance. Continuity confirms that an electrical path exists. Resistance testing evaluates how much opposition to current exists along that path.
A cable may pass a basic continuity check yet still exhibit excessive resistance due to a poor crimp, a damaged conductor, weak termination, or high-resistance contact.
Depending on the design, manufacturers may evaluate conductor resistance, contact resistance, or very low resistance in grounding and bonding paths.
For power or signal applications, excessive resistance can contribute to voltage drop, unwanted heat, and unreliable performance.
High-Voltage Cable Testing Checks Insulation
High-voltage cable testing, often called hi-pot or dielectric withstand testing, checks whether an assembly’s insulation can withstand a specified electrical stress.
During testing, voltage may be applied between conductors, between a conductor and the shield or ground, or between the shield and ground, depending on the cable design. The test can help identify insulation weakness, leakage, or conditions that could lead to electrical breakdown.
There is no single high-voltage test value that is right for every assembly. Test voltage, duration, and pass/fail limits should come from the product specification, customer requirement, or applicable standard.
This is especially important when designing assemblies for demanding power applications. Cables Unlimited discusses some of these considerations in its guide to high-performance cabling for high-voltage battery systems.
Visual and Dimensional Inspection Before Shipment
Electrical testing is only one part of cable assembly quality control.
A cable can pass an electrical test and still have the wrong length, a damaged jacket, an incorrectly positioned connector, or poor labeling.
Visual inspection may check:
- Insulation and cable jackets
- Connector housings
- Contacts and terminals
- Crimps
- Labels and markings
- Strain relief
- Connector orientation
- Visible workmanship
Dimensional inspection may verify overall cable length, branch lengths, breakout locations, connector position, and other measurements shown on the approved drawing.
These checks help confirm that the finished assembly will not only work electrically but also fit where it is supposed to be installed.
Mechanical Testing for Strength and Durability
Some cable assemblies require mechanical testing because they will be pulled, bent, routed, or moved during installation and use.
Pull Testing
Pull testing can evaluate crimp strength, terminal retention, connector retention, and the ability of a termination to withstand a defined force.
The required force depends on the wire, terminal, connector, design, and customer specification.
Flex and Bend Testing
Flex and bend testing is more relevant for cables used in moving applications.
Robotics, automated machinery, and other dynamic systems can repeatedly stress conductors, jackets, and strain-relief points. Testing may consider bend radius, repeated flexing, fatigue, and physical durability.
For more on this type of operating environment, see Cables Unlimited’s guide to harsh-environment cables for robotic systems.
Mechanical tests are selected when the application requires them rather than being applied in exactly the same way to every cable assembly.

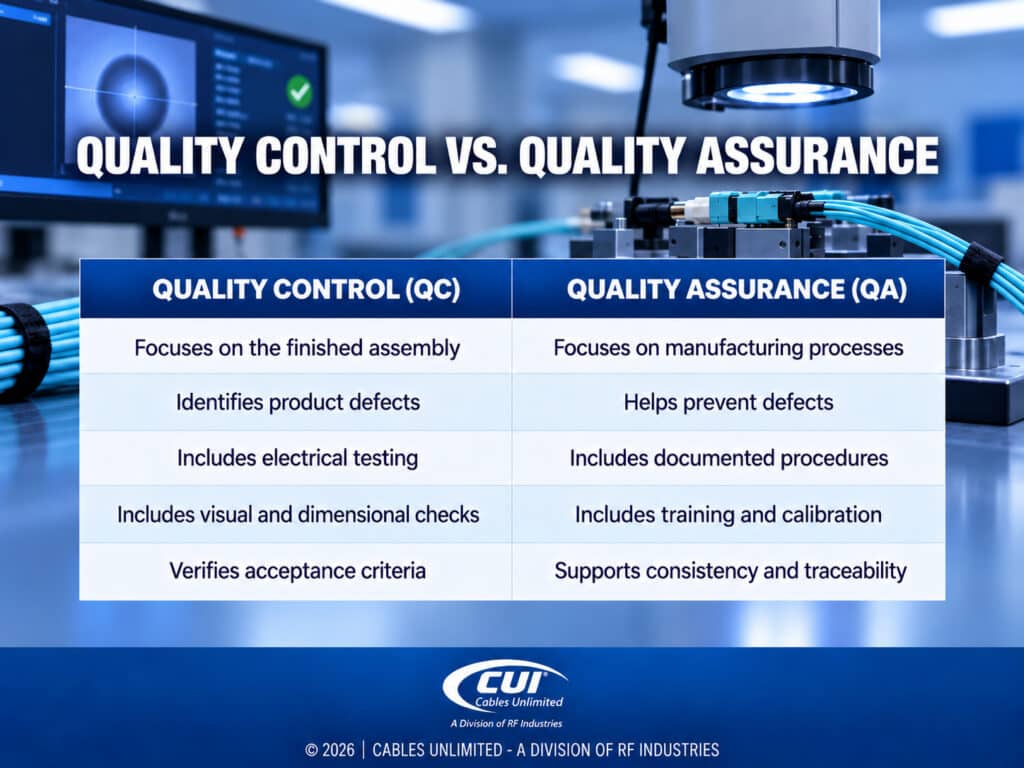

Cable Assembly Quality Control and Quality Assurance
Cable assembly quality control focuses on checking the product itself. It can include visual inspections, dimensional measurements, electrical tests, and pass/fail checks.
Cable assembly quality assurance is broader. It focuses on the systems used to make production consistent, such as:
- Documented procedures
- Employee training
- Calibrated test equipment
- Inspection plans
- Traceability
- Production records
- Process controls
A simple way to remember the difference is this: quality control checks the product, while quality assurance helps control the process used to make it.
IPC/WHMA-A-620 is an important industry reference for cable and wire harness assemblies. IPC states that the standard covers manufacturing practices, tests, and acceptance criteria for cable and wire harness assemblies.
Do All Custom Cable Assemblies Receive the Same Tests?
No. The correct test plan depends on the product and its intended use.
Test requirements may change based on:
- Cable type
- Voltage
- Signal type
- Operating environment
- Industry
- Customer specifications
- Applicable standards
Some tests may be production checks, while others are qualification, sampling, or application-specific tests.
For example, environmental or durability testing may be important for a cable designed for extreme conditions, but unnecessary as a routine shipment test for another product.
Cables used in demanding applications may require additional considerations, as explained in Cables Unlimited’s article on custom cable assemblies for high-stress environments.
What Happens If a Cable Assembly Fails Testing?
A failed test gives the manufacturer a chance to find the problem before the cable reaches the customer.
The normal quality path may include identifying the fault, isolating its cause, reworking or repairing the assembly when permitted, and testing it again.
If the cable does not meet the required acceptance criteria, it should not be approved as an assembly.
This is one reason custom cable assembly testing matters: finding a problem during production is much better than discovering it after installation.
What Buyers Should Ask Custom Cable Assembly Manufacturers
Buyers comparing custom cable assembly manufacturers should understand how testing will be handled before production begins.
Useful questions include:
- What electrical tests will be performed?
- Is continuity testing included?
- Will resistance limits be measured?
- Does the assembly require hi-pot testing?
- Is every assembly tested, or is sampling used?
- What acceptance limits apply?
- Can test records be supplied when required?
- How are failed assemblies handled?
Clear answers help align the cable design, test plan, documentation, cost, and delivery expectations.
How Cables Unlimited Supports Custom Cable Assembly Testing in the USA
Cables Unlimited supports custom cable projects from specification review through manufacturing and testing. Testing may include continuity, crimp analysis, pull testing, visual inspection, and automated testing. Fiber optic assemblies may also require insertion loss, return loss, continuity, and length verification. Customers can submit cable specifications for review.
Testing Helps Prevent Problems Before Installation
Custom cable assembly testing verifies that electrical connections, physical construction, and dimensions meet project requirements. Continuity, resistance, high-voltage, visual, dimensional, and mechanical tests each address a different quality concern.
The right test plan depends on the cable, application, and acceptance requirements. If you need a custom assembly, contact Cables Unlimited to discuss your drawings, testing needs, and production goals.
